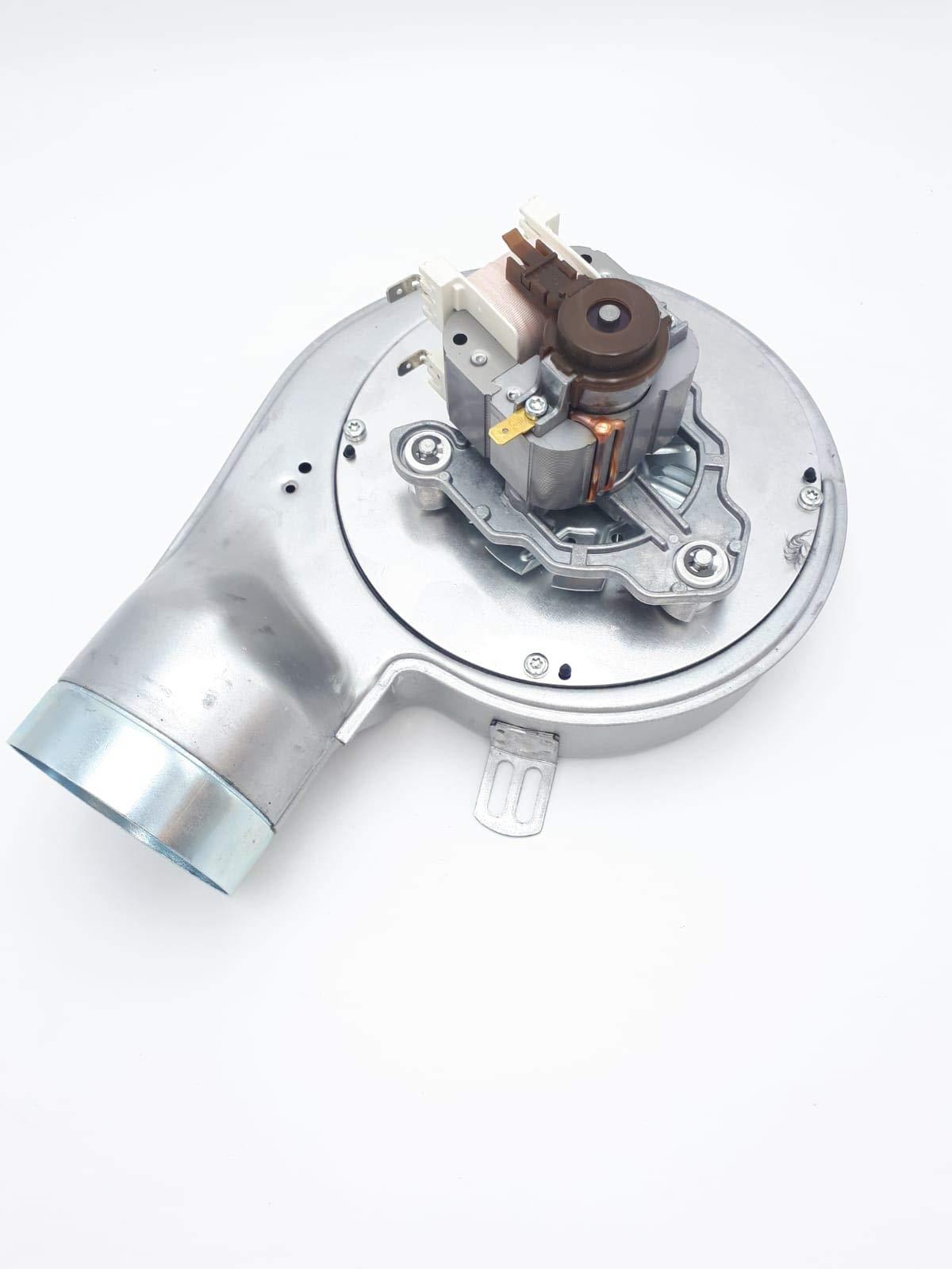

Ebmpapst G2E152/0020-3030

EBM G2E152 Flue
Equipped with a worm with an outlet of 80 mm and a stainless steel impeller.
Can be mounted as a replacement for the SIT GROUP LN2 NATALINI PL21 puller.
Designed to generate pressure up to 280 Pa with a maximum range of 165 m³/h.
Equipped with a snorkel for smoke outlet and hall sensor (encoder), with insulation class H
EBM G2E152 0020-3030:

Manufacturer: EBM.
Model: G2E152 0020-3030 230V AC 50Hz
Complete with snail: yes (outlet diameter 80 mm).
Generated pressure: up to 280 Pa
Maximum flow rate of 165 m³/h
Speed: up to 2760 rpm.
Power: 46 watts.
Delivery flange: diameter 80 mm.
Fan diameter: 150 mm.
